🚀 Say Goodbye to Limitations: The New Era of Modular PC Building
The CORSAIR 4000D chassis is an iconic name in the world of PC builders. It is synonymous with excellent airflow and clean design. But now, the brand has raised the standard with the launch of the FRAME 4000D RS series.
If you are looking for a tower that combines elite thermal performance, impeccable aesthetics, and unprecedented modularity, the FRAME 4000D RS is undoubtedly the new candidate for the ultimate case for your next setup.
đź’ˇ Three Defining Key Points: Maximum Innovation
The “RS” (Reverse Connector Support) version is not a simple update; it is a redesign that embraces the most modern trends in PC construction:

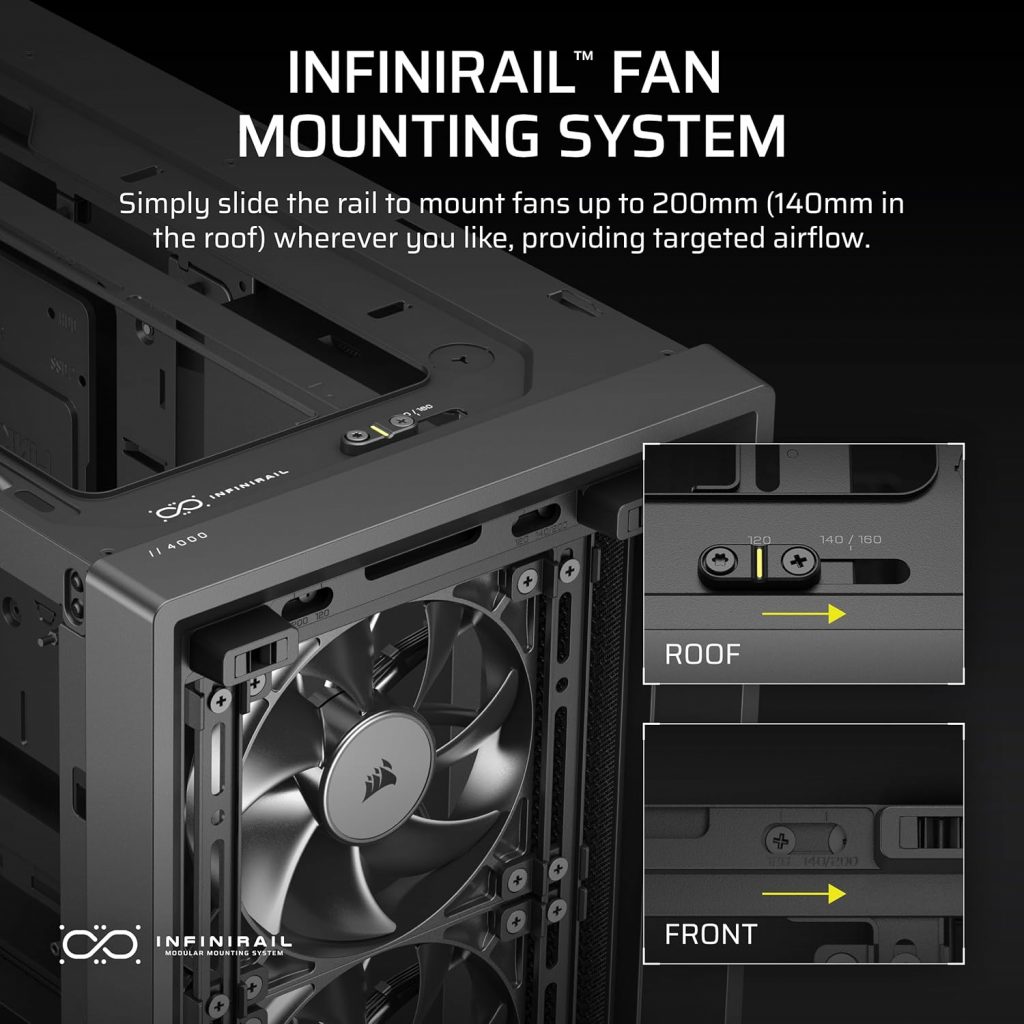

1. The InfiniRail™ Fan Mounting System
Forget fixed rows of fan holes. The InfiniRail™ is a steel rail mounting system that allows you to slide and adjust the position of your fans and radiators with millimeter precision.
- Flexibility: Place your 200mm, 140mm, or 120mm fan exactly where you need it most to direct airflow to your components.
- Compatibility: It seamlessly adapts to complex liquid cooling setups without interfering with the motherboard or RAM.

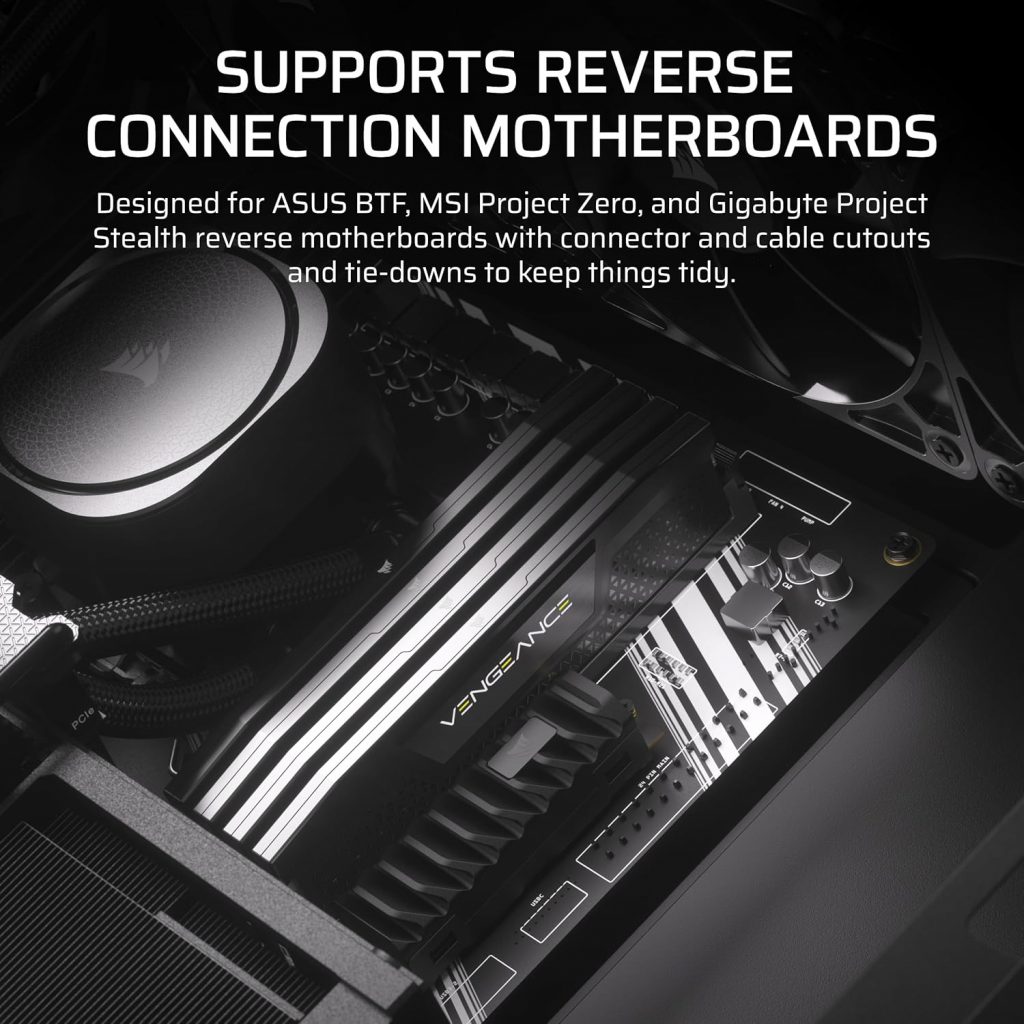

2. NATIVE Support for Reverse Connector Motherboards (BTF/Project Zero)
This is the big game-changer. The FRAME 4000D RS is designed to be compatible with new reverse connector motherboards (such as ASUS BTF, MSI Project Zero, or GIGABYTE PROJECT STEALTH).
- What does this mean? All power and data ports on the motherboard (24-pin, CPU, SATA, etc.) connect behind the tray.
- Result: An interior view completely free of cables, with only the graphics card and cooling visible, offering a minimalist and professional aesthetic.

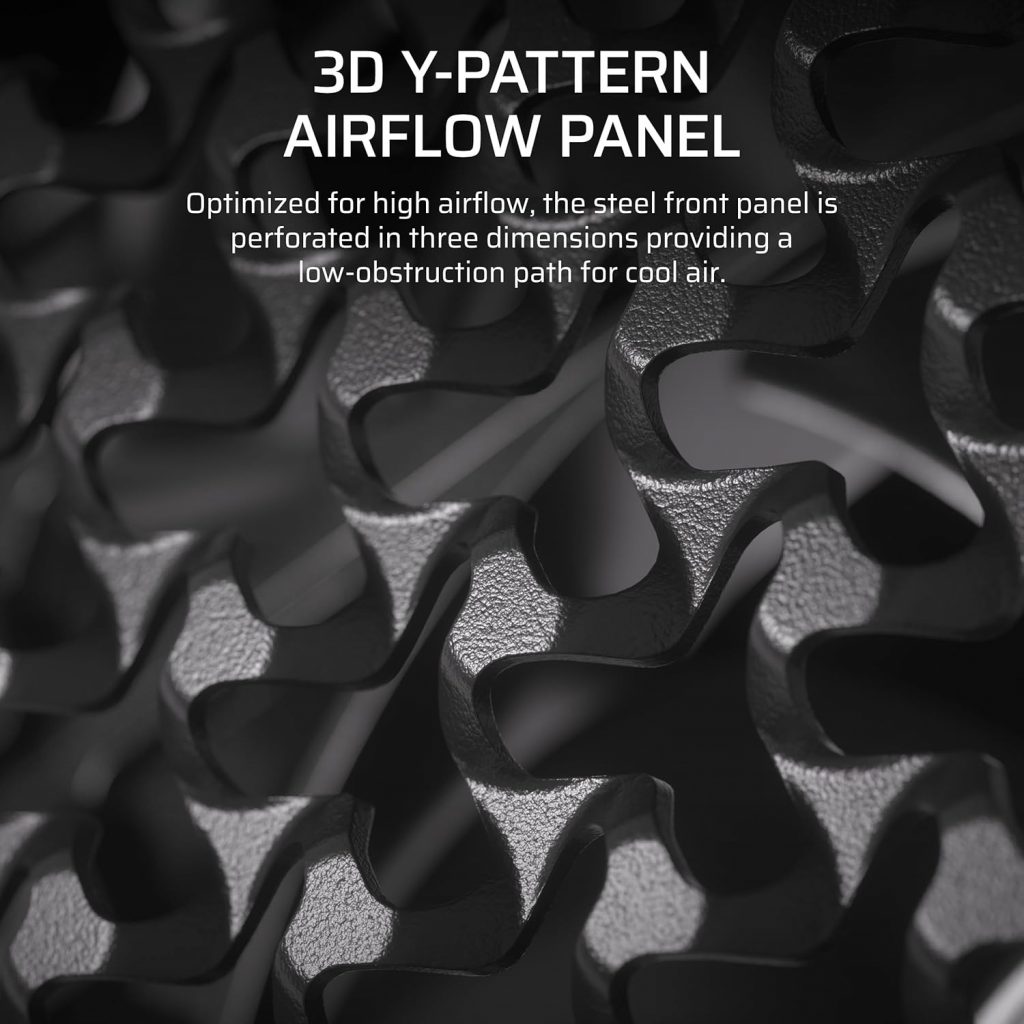

3. The 3D Y-Pattern Airflow Front Panel
The heart of the performance is its airflow. Corsair has optimized the perforated steel front panel with a three-dimensional “Y” pattern. This design ensures a cold air path with minimal restriction, significantly enhancing overall thermal performance.
❄️ Power Up Your Cooling: Extreme Capacity
The spacious design and modularity translate into brutal cooling capacity, ideal for today’s high-end components:
| Feature | Detail |

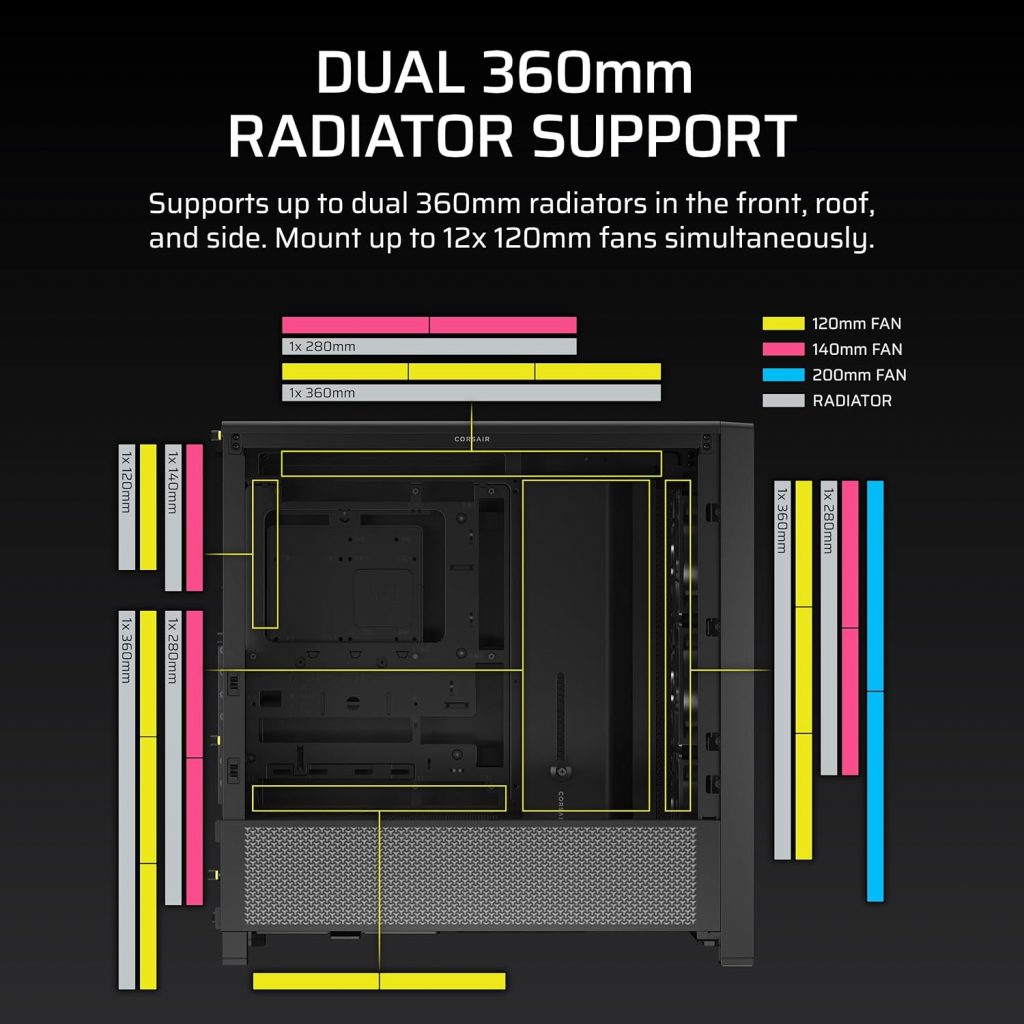

| Radiator Support | Triple 360mm Support: Front, Top, and Side. |
| Included Fans | 3 x RS120 performance fans (the ARGB version includes RGB). |
| Max Fan Capacity | Up to 12 x 120mm simultaneously. |
| Front Panel | Compatible with 2 x 200mm / 3 x 120mm fans. |
⚙️ Key Specifications for the Modern Builder
| Specification | Important Detail |
| Case Type | Modular Mid-Tower |
| Motherboard Compatibility | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305 x 277 mm) |
| Max GPU Length | 430 mm (Plenty of space for the largest cards) |
| Max CPU Cooler Height | 170 mm |

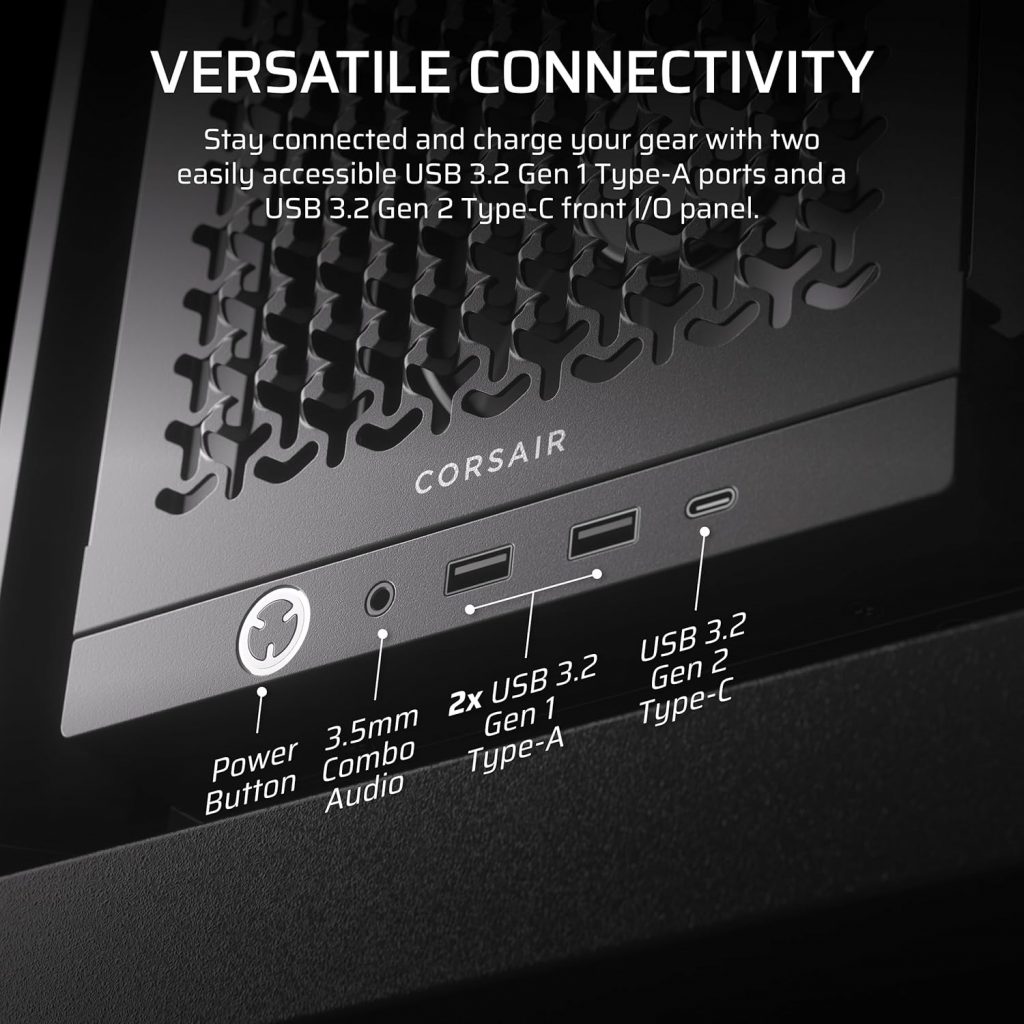

| Front I/O Connectivity | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A |
| Storage | 2 x 3.5″ HDD, 4 x 2.5″ SSD |
| Building Plus | Integrated GPU Anti-Sag Stabilization Arm. |
âś… Verdict: Is the FRAME 4000D RS Worth It?
The CORSAIR FRAME 4000D RS is a fantastic option. Not only does it inherit the airflow excellence reputation of the original 4000D, but it takes it into the future with:
- Total Modularity: The InfiniRail system allows for customization you won’t find in most cases.
- Future-Proofing: Its compatibility with BTF motherboards and its cable-free design make it the perfect chassis for the cleanest, most forward-looking builds.
CORSAIR 4000D RS Frame
